CD4148WSP - Small-Signal Chip Diode

Name: CD4148WSP
SKU: CD4148WSP-936062

Crownpo Technology

The CD4148WSP by Crownpo Technology is a Small-Signal Chip Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CD4148WSP
Manufacturer	Crownpo Technology
File Size	103.62 KB
Description	Small-Signal Chip Diode
Datasheet	CD4148WSP-CrownpoTechnology.pdf

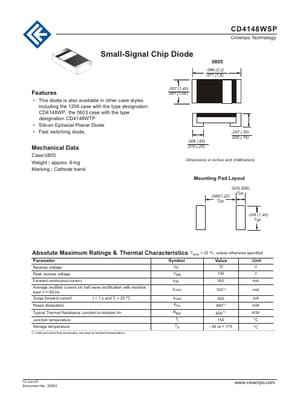

Additional preview pages of the CD4148WSP datasheet.

This diode is also available in other case styles including the 1206 case with the type designation CD4148WP, the 0603 case with the type designation CD4148WTP.
Silicon Epitaxial Planar Diode.
Fast switching diode. Mechanical Data Case:0805 Weight : approx. 6 mg Marking : Cathode band .057 (1.45) .041 (1.05) .026 (.65) .010 (.25) .037 (.95) .029 (.75) Dimensions in inches and (millimeters) Mounting Pad Layout .020(.508) Typ. .048(1.22) Typ. .055 (1.40) Typ. Abs.
