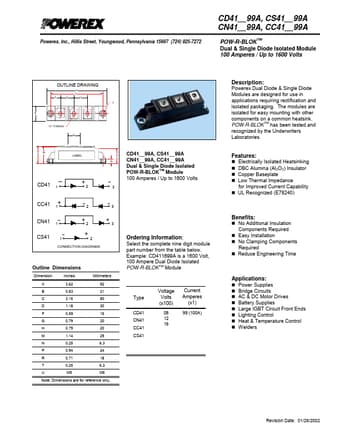

CD41 Datasheet, Volts, Powerex Power Semiconductors

CD41 Features

• Volts T T T T Electrically Isolated Heatsinking DBC Alumina (Al2O3) Insulator Copper Baseplate Low Thermal Impedance for Improved Current Capability T UL Recognized (E78240) CD41 1 ~ 2

PDF File Details

Part number:

CD41

Manufacturer:

Powerex Power Semiconductors

File Size:

105.21kb

Download:

📄 Datasheet

Description:

Pow-r-blok dual & single diode isolated module 100 amperes / up to 1600 volts. Powerex Dual Diode & Single Diode Modules are designed for use in applications requiring rectification and isolated packaging. The m

CD41 Application

• Applications requiring rectification and isolated packaging. The modules are isolated for easy mounting with other components on a common heatsink.
