CD410830 - Dual Diode

Powerex Dual Diode POW-R-BLOK™ Modules are designed for use in applications requiring AC to DC rectification in isolated packaging.

The modules are isolated for easy mounting with other components on common heatsinks.

POW-R-BLOK™ has been tested and recognized A by Underwriters Laboratories (QQQX2

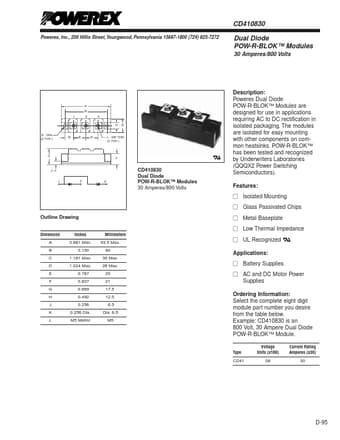

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 CD410830 Dual Diode POW-R-BLOK™ Modules 30 Amperes/800 Volts K - DIA.

(2 TYP.) A B 12 3 HD GE E L - M5 THD (3 TYP.) C J 1 2 F 3 CD410830 Dual Diode POW-R-BLOK™ Modules 30 Amperes/800 Volts Outline Drawing Dimension A B C D E F G H J K L Inches 3.681 Max.

3.150 1.181 Max.

1.024 Max.

0.787 0.827 0.689 0.492 0.256 0.256 Dia.

M5 Metric Millimeters 93.5 Max.

80 30 Max.

26 Max.

20 21 17.5 12.5 6.5 Dia.

CD410830 Features

* Ⅺ Isolated Mounting Ⅺ Glass Passivated Chips Ⅺ Metal Baseplate Ⅺ Low Thermal Impedance Ⅺ UL Recognized A Applications: Ⅺ Battery Supplies Ⅺ AC and DC Motor Power Supplies Ordering Information: Select the complete eight digit module part number you desire from the table below. Example: CD410830 is
