CD411260 Dual Diode

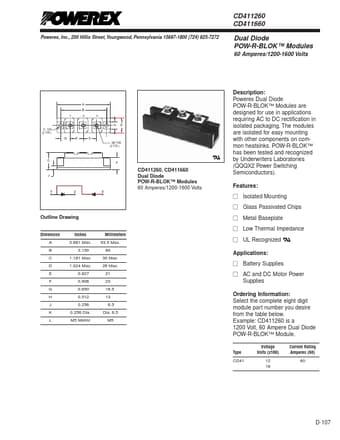

Powerex Dual Diode POW-R-BLOK™ Modules are designed for use in applications requiring AC to DC rectification in isolated packaging. The modules are isolated for easy mounting with other components on common heatsinks. POW-R-BLOK™ has been tested and recognized by Underwriters Laboratories (QQQX2 Po.

CD411260 Features

* Ⅺ Isolated Mounting Ⅺ Glass Passivated Chips Outline Drawing Ⅺ Metal Baseplate Ⅺ Low Thermal Impedance Millimeters 93.5 Max. 80 30 Max. 26 Max. 21 23 16.5 13 6.5 Dia. 6.5 M5 Dimension A B C D E F G H J K L Inches 3.681 Max. 3.150 1.181 Max. 1.024 Max. 0.827 0.906 0.650 0.512 0.256 0.256 Dia. M5
