MP120D3 Datasheet - Crydom Corporation

MP120D3 Zero Cross0.02-3 Amps RMS12-140 Volts RMS3-32 Control - Volts DC

Series MP 3 - 4 Amps 120/240 Vac (AC Output) 60 Vdc (DC Output) SIP High Packaging Density Compatible w ith 5, 15 & 24 Volt Logic Systems www.datasheet4u.com Opto-Isolated 4000 Vrms Zero Voltage Sw itching (AC) Available in 3Arms and 4Arms ratings, all are SPST-NO PC-mount relays that provide greater packaging density and compatibility with pin out of Series 6 and OAC output modules. Internal snubber included for high dv/dt .

MP120D3 Datasheet (58.41 KB)

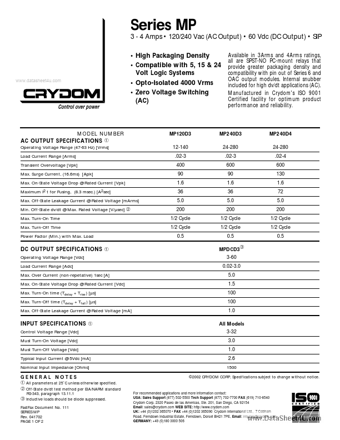

MP120D3 Datasheet Preview — Preview of MP120D3 PDF

Datasheet Details

Part number:

MP120D3

Manufacturer:

Crydom Corporation

File Size:

58.41 KB

Description:

Zero cross0.02-3 amps rms12-140 volts rms3-32 control - volts dc.
