AO241R - AC OUTPUT MINI-SIP

This page provides the datasheet information for the AO241R, a member of the AO241 AC OUTPUT MINI-SIP family.

📥 Download Datasheet

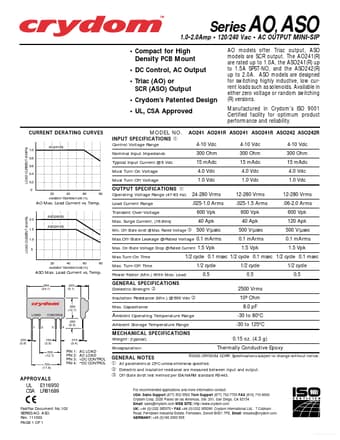

Datasheet preview – AO241R

Datasheet Details

Part number AO241R
Manufacturer Crydom
File Size 35.08 KB
Description AC OUTPUT MINI-SIP
Datasheet download datasheet AO241R Datasheet
Additional preview pages of the AO241R datasheet.

📁 Similar Datasheet

  • AO2 - Oxygen Sensor (City Technology)
  • AO2007 - OP AMPLIFIER (AiT Semiconductor)
  • AO211 - AND / OR circuit (AMS)
  • AO22 - AND / OR circuit (AMS)
  • AO2301 - P-Channel MOSFET (SZChip)
  • AO2301 - P-Channel MOSFET (VBsemi)
  • AO2302 - N-Channel Enhancement Mode Field Effect Transistor (HAOHAI)
  • AO2305 - P-Channel MOSFET (HAOHAI)
  • AO2369 - OP AMPLIFIER (AiT Semiconductor)
  • AO2904 - 1.2MHZ DUAL OPERATIONAL AMPLIFIER (AiT Semiconductor)
Other Datasheets by Crydom
  • AO241 - AC OUTPUT MINI-SIP

Full PDF Text Transcription

Click to expand full text
1.0-2.0Amp • 120/240 Vac • AC OUTPUT MINI-SIP • Compact for High Density PCB M ount • DC Control, AC Output • Triac (AO) or SCR (ASO) Output • Crydom’s Patented Design • UL, CSA Approved AO models offer Triac output, ASO models are SCR output. The AO241(R) are rated up to 1.0A, the ASO241(R) up to 1.5A SPST-NO, and the ASO242(R) up to 2.0A. ASO models are designed for switching highly inductive, low current loads such as solenoids. Available in either zero voltage or random switching (R) versions. Manufactured in Crydom’s ISO 9001 Certified facility for optimum product performance and reliability. Series AO, ASO CURRENT DERATING CURVES LOAD CURRENT (AMPS) AO241(R) MODEL NO.
