CXOHD5 Crystal Oscillator

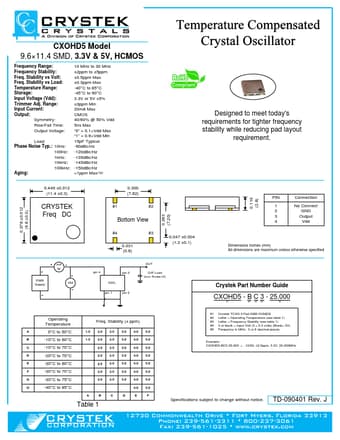

CXOHD5 Model 9.6×11.4 SMD, 3.3V & 5V, HCMOS Frequency Range: 10 MHz to 30 MHz Frequency Stability: ±2ppm to ±5ppm Freq. Stability vs Volt: ±0.5ppm Max Freq. Stability vs Load: ±0.3ppm Max Temperature Range: -40°C to 85°C Storage: -45°C to 90°C Input Voltage (Vdd): 3.3V or 5V ±5% Trimmer Adj. Range: ±3ppm Min Input Current: 20mA Max Output: CMOS Symmetry: 40/60% @ 50% Vdd Rise/Fall Time: 5ns Max Output Voltage: “0” = 0.1×Vdd Max “1” = 0.9×Vdd Min Load: 15pF Typical Phas.

CXOHD5-CrystekCorporation.pdf

CXOHD5 Datasheet Preview — Preview of CXOHD5 PDF

Datasheet Details

Part number:

CXOHD5

Manufacturer:

Crystek Corporation

File Size:

63.31 KB

Description:

Crystal oscillator.
