CXO3MHG Datasheet - STATEK

Low-Profile Miniature Surface-Mount 3.3 V Crystal Oscillator

CXO3MHG Features

* High shock resistance 3.3 V operation Designed for surface mount applications using infrared, vapor phase, or epoxy mount techniques CMOS and TTL compatible Low power consumption Optional Output Enable/Disable with Tri-State Low EMI emission Full military testing available APPLICATIONS A TOP DIMEN

CXO3MHG General Description

Intended for applications requiring shock survivability to 10,000 g (and higher), Statekโ€™ s surface-mount CXO3MHG oscillators are high-shock versions of the CXO3M oscillators. These oscillators consist of a Statek miniature quartz crystal and a CMOS/TTL compatible hybrid circuit in a low-profile ce.

CXO3MHG Datasheet (372.97 KB)

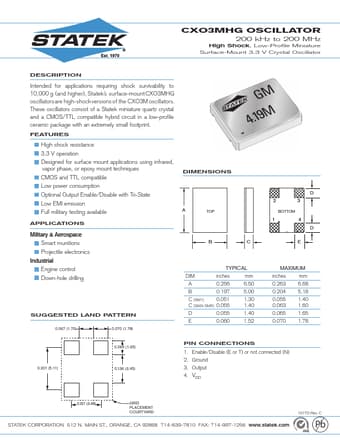

Preview of CXO3MHG PDF

Datasheet Details

Part number:

CXO3MHG

Manufacturer:

STATEK

File Size:

372.97 KB

Description:

Low-profile miniature surface-mount 3.3 v crystal oscillator.
