MUN12AD03-SH Datasheet - Cyntec

MUN12AD03-SH - High Efficiency uPOL Module

The uPOL module is non-isolated dc-dc converter that can deliver up to 3A of output current.

The PWM switching regulator, high frequency power inductor are integrated in one hybrid package.

It only needs input/output capacitors and one voltage dividing resistor to perform properly.

The module has a

MUN12AD03-SH Features

* High Density uPOL Module

* 3A Output Current

* 91% Peak Efficiency at 12VIN

* Input Voltage Range from 4.5V to 16V

* Output Voltage Range from 0.6V to 5.0V

* Enable / PGOOD Function

* Automatic Power Saving/PWM Mode

* Protections (OCP: Non-latching, OTP)

* Adju

MUN12AD03-SH-Cyntec.pdf

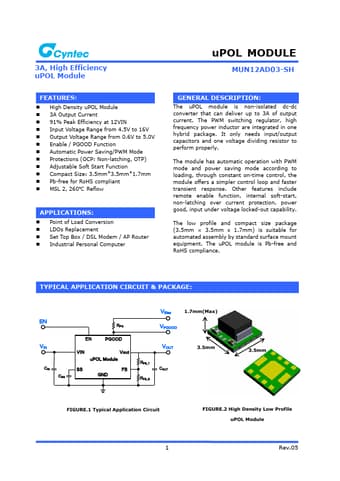

Preview of MUN12AD03-SH PDF
