CY14E256L

256-Kbit (32K x 8) nvSRAM

Cypress Semiconductor

CY14E256L Features

* 25 ns and 45 ns Access Times

* “Hands-off” Automatic STORE on Power Down with external 68µF capacitor

* STORE to QuantumTrap® Nonvolatile Elements is initiated by Software, Hardware or Autostore® on Power-down Functional Description The Cypress CY14E256L is a fast static R

CY14E256L General Description

The Cypress CY14E256L is a fast static RAM with a nonvolatile element in each memory cell. The embedded nonvolatile elements incorporate QuantumTrap technology producing the world’s most reliable nonvolatile memory. The SRAM provides Infinite read and write cycles, while independent, nonvolatile dat.

CY14E256L Datasheet (836.38 KB)

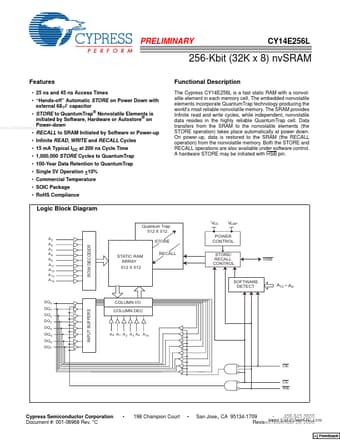

CY14E256L Datasheet Preview — Preview of CY14E256L PDF

Datasheet Details

Part number:

CY14E256L

Manufacturer:

Cypress Semiconductor

File Size:

836.38 KB

Description:

256-kbit (32k x 8) nvsram.
