CY22381

Three-PLL General Purpose Flash Programmable Clock Generator

CY22381 Features

* Three integrated phase-locked loops

* Ultra-wide divide counters (eight-bit Q, eleven-bit P, and seven-bit post divide)

* Improved linear crystal load capacitors

* Flash programmability

* Field programmability

* Low-jitter, high-accuracy outputs

* Power-management optio

CY22381 General Description

The CY22381 is the next-generation programmable Flash programmable clock for use in networking, telecommunication, datacom, and other general-purpose applications. The CY22381 offers up to three configurable outputs in a 8-pin SOIC, running off.

CY22381 Datasheet (301.89 KB)

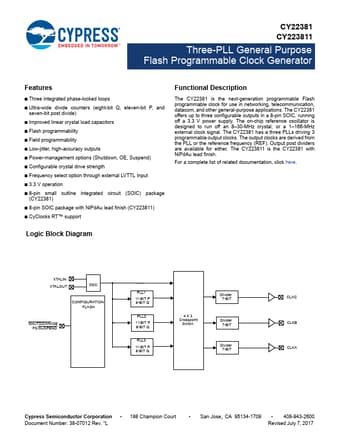

Preview of CY22381 PDF

Datasheet Details

Part number:

CY22381

Manufacturer:

Cypress Semiconductor

File Size:

301.89 KB

Description:

Three-pll general purpose flash programmable clock generator.
