CY28551 - Universal Clock Generator

Cypress Semiconductor

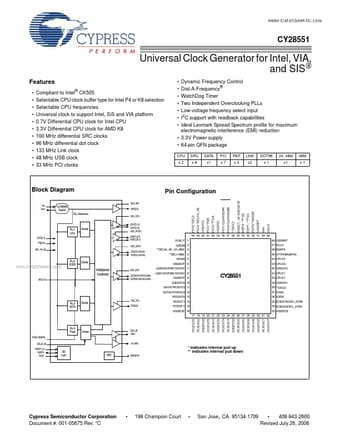

CY28551 Datasheet Preview — Preview of CY28551 PDF

Datasheet Details

Part number	CY28551
Manufacturer	Cypress Semiconductor
File Size	720.57 KB
Description	Universal Clock Generator
Datasheet	CY28551_CypressSemiconductor.pdf

CY28551 Product details

Description

Pin No. SEL24_48#/24_4 I/O, PD 3.3V tolerant input for 24 MHz, 48 MHz selection/24_48MHz clock output. SEL1/48MHz I/O, PD 3.3V tolerant input for output selection/48MHz clock output.

Features

Compliant to Intel® CK505 Selectable CPU clock buffer type for Intel P4 or K8 selection Selectable CPU frequencies Universal clock to support Intel, SiS and VIA platform 0.7V Differential CPU clock for Intel CPU 3.3V Differential CPU clock for AMD K8 100 MHz differential SRC clocks 96 MHz differential dot clock 133 MHz Link clock 48 MHz USB clock 33 MHz PCI clocks.
