CY28400

100MHz Differential Buffer

CY28400 Features

* CK409 or CK410 companion buffer

* Four differential 0.7V clock pairs

* Individual OE controls

* Low CTC jitter (< 50 ps)

* Programmable bandwidth

* SRC_STOP# power management control

* SMBus Block/Byte/Word Read and Write support

* 3.

CY28400 General Description

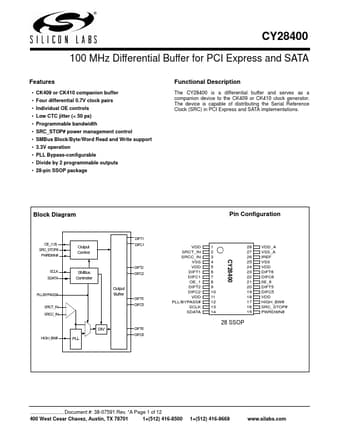

The CY28400 is a differential buffer and serves as a companion device to the CK409 or CK410 clock generator. The device is capable of distributing the Serial Reference Clock (SRC) in PCI Express and SATA implementations. Block Diagram OE_(1,6) SRC_STOP# PWRDWN# SCLK SDATA PLL/BYPASS# SRCT_IN SRCC_.
