CY28410-2 Datasheet - Cypress Semiconductor

CY28410-2 Clock Generator

CPUT2_ITP/SRCT7, O, DIF Selectable Differential CPU or SRC clock output. CPUC2_ITP/SRCC7 ITP_EN = 0 @ VTT_PWRGD# assertion = SRC7 ITP_EN = 1 @ VTT_PWRGD# assertion = CPU2 DOT96T, DOT96C FS_A FS_B/TEST_MODE O, DIF Fixed 96-MHz clock output. I I 3.3V tolerant input for CPU frequency selection. Refer .

CY28410-2 Features

* Compliant with Intel CK410

* Supports Intel P4 and Tejas CPU

* Selectable CPU frequencies

* Differential CPU clock pairs

* 100-MHz differential SRC clocks

* 96-MHz differential dot clock

* 48-MHz USB clocks

* 33-MHz PCI clock

CY28410-2_CypressSemiconductor.pdf

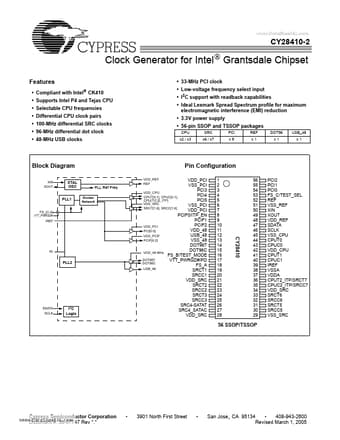

Preview of CY28410-2 PDF
CY28410-2 Datasheet Preview Page 2 CY28410-2 Datasheet Preview Page 3

Datasheet Details

Part number:

CY28410-2

Manufacturer:

Cypress Semiconductor

File Size:

312.91 KB

Description:

Clock generator.
