CY28437

Clock Generator

CY28437 Features

* Compliant to Intel£ CK410

* Supports Intel Prescott and Tejas CPU

* Selectable CPU frequencies

* Differential CPU clock pairs

* 100 MHz differential SRC clocks

* 96 MHz differential dot clock

* 48 MHz USB clocks

* 33 MHz PCI clock

CY28437 General Description

Pin No. 1,7 2,6 4 5 8 Name VDD_PCI VSS_PCI FS_E/PCI4 PCI DF_EN/PCIF0 Type PWR GND 3.3V power supply for outputs. Ground for outputs. Description I/O, SE, 3.3V-tolerant input for CPU frequency selection/33-MHz clock. PU Refer to DC Electrical Specifications table for Vil_FS and Vih_FS specifications.

CY28437 Datasheet (232.34 KB)

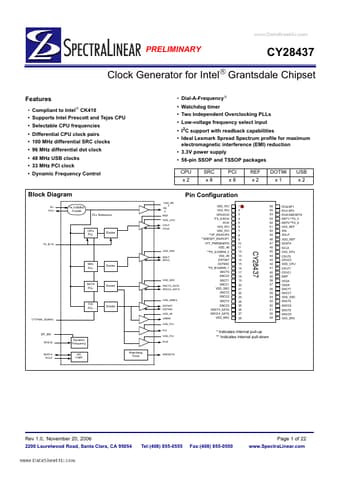

Preview of CY28437 PDF
