CY28411-1

Clock Generator

CY28411-1 Features

* Compliant to Intel£ CK410M

* Supports Intel Pentium-M CPU

* Selectable CPU frequencies

* Differential CPU clock pairs

* 100 MHz differential SRC clocks

* 96 MHz differential dot clock

* 48 MHz USB clocks CPU x2 / x3 SRC x7 / x8 PCI x6 REF x1

CY28411-1 General Description

3.3V LVTTL input for CPU_STP# active low. Rev 1.0, November 22, 2006 2200 Laurelwood Road, Santa Clara, CA 95054 Tel:(408) 855-0555 Fax:(408) 855-0550 Page 1 of 18 www.SpectraLinear.com www.DataSheet4U.com CY28411-1 Pin Definitions Pin No. 36,35 Name CPUT2_ITP/SRCT7, CPUC2_ITP/SRCC7 DOT96T, DOT.

CY28411-1 Datasheet (211.45 KB)

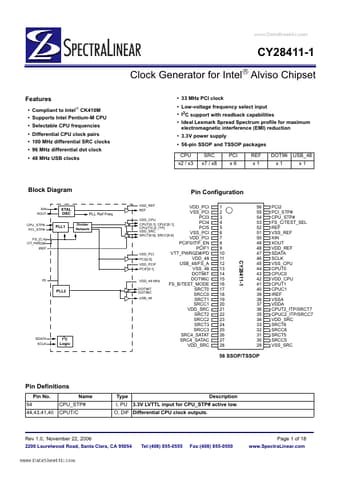

Preview of CY28411-1 PDF

Datasheet Details

Part number:

CY28411-1

Manufacturer:

SpectraLinear

File Size:

211.45 KB

Description:

Clock generator.
