CY28416

Next Generation FTG

CY28416 Features

* Supports Intel Pentium®4-Type CPUs

* Selectable CPU Frequencies

* Two Differential CPU Clock Pairs

* Four 100-MHz Differential SRC Clock Pairs

* One CPU/SRC Selectable Differential Clock Pair

* One 96-MHz Differential Dot Clock Support

* Two

CY28416 General Description

CY28416 O, DIF Selectable Differential CPU or SRC clock output. ITP_EN = 0 @VTT_PWRGD# assertion PIN 39,38 = SRCT4,SRCC4 ITP_EN = 1 @VTT_PWRGD# assertion PIN 39,38 = CPUT2_ITP,CPUC2_ITP O, DIF Differential 96-MHz clock output I/O, SE 3.3V tolerant input for CPU frequency/REF clock Refer to DC Elec.

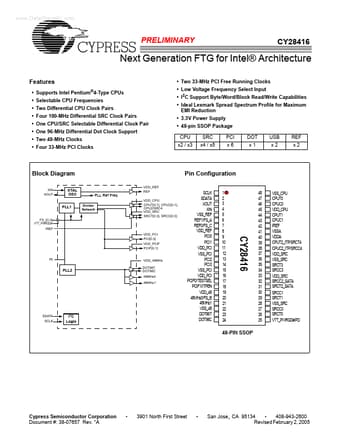

CY28416 Datasheet (301.86 KB)
