CY28341 - Universal Single-Chip Clock Solution

Product Overview

Datasheet Details

Part number	CY28341
Manufacturer	SpectraLinear
File Size	309.45 KB
Description	Universal Single-Chip Clock Solution
Datasheet	CY28341 Datasheet

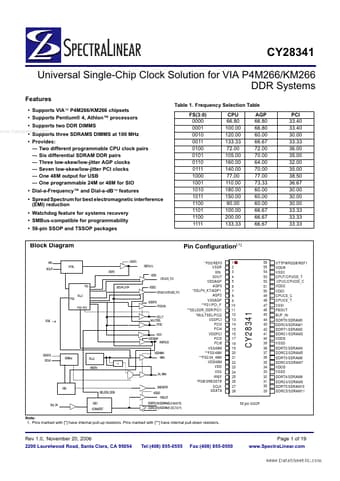

Additional preview pages of the CY28341 datasheet.

Product details

Description

2] Pin 3 4 1 XIN XOUT FS0/REF0 VDD VDD Name PWR I/O I O Description Oscillator Buffer Input.Connect to a crystal or to an external clock.Oscillator Buffer Output.Connect to a crystal.Do not connect when an external clock is applied at XIN.I/O Power-on Bidirectional Input/Output.At power-up, FS0 is the input.When PU the power supply voltage crosses the input threshold voltage, FS0 state is latched and this pin becomes REF0, buffered copy of signal applied at XIN.I If SELP4_K7 = 1, with a

Features

>.
Spread Spectrum for best electromagnetic interference (EMI) reduction.
Watchdog feature for systems recovery.
SMBus-compatible for programmability.
56-pin SSOP and TSSOP packages Block Diagram XIN XOUT XTAL REF0 VDDR REF(0:1) VDDI CPUCS_T/C FS0 Pin Configuration[1].
FS0/REF0 VSSR XIN XOUT VDDAGP AGP0.
SELP4_K7/AGP1 AGP2 VSSAGP.
FS1/PCI_F.
SELSDR_DDR/PCI1.
