CY28342 - High-performance SiS645/650 Pentium 4 Clock Synthesizer

CY28342 Description

42 CY28342 High-performance SiS645/650 Pentium 4 Clock Synthesizer .
Pin 6 7 39,40,43,44 16,17,20,23 14 [2] Name XIN XOUT CPU (0:1)T, CPU (0:1)C PCI (0:5) FS3/PCI_F0 PWR I/O I Description Oscillator buffer input.

CY28342 Features

* Supports Pentium 4-type CPUs 3.3V power supply Eight copies of PCI clocks One 4-MHz USB clock Two copies of ZCLK clocks One 48-MHz/24-MHz programmable SIO clock Two differential CPU clock pairs

📥 Download Datasheet

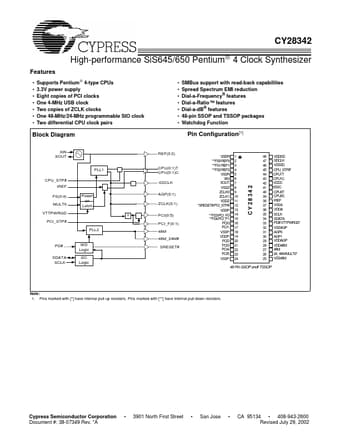

Preview of CY28342 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CY28342
Manufacturer
Cypress Semiconductor
File Size
178.34 KB
Datasheet
CY28342_CypressSemiconductor.pdf
Description
High-performance SiS645/650 Pentium 4 Clock Synthesizer
