CY28411-1

Clock Generator

CY28411-1 Features

* Compliant to Intel CK410M

* Supports Intel Pentium-M CPU

* Selectable CPU frequencies

* Differential CPU clock pairs

* 100-MHz differential SRC clocks

* 96-MHz differential dot clock

* 48-MHz USB clocks

* 33-MHz PCI clock

* L

CY28411-1 General Description

3.3V LVTTL input for CPU_STP# active low. 14,15 12 16 53 FS_C/TEST_SEL I 39 56,3,4,5 55 8 9 52 46 47 26,27 IREF PCI PCI_STP# PCIF0/ITP_EN PCIF1 REF SCLK SDATA SRC4_SATAT, SRC4_SATAC I O, SE 33-MHz clocks. I, PU I/O, SE 33-MHz clock/CPU2 select (sampled on the VTT_PWRGD# assertion). 1 = CPU2_.

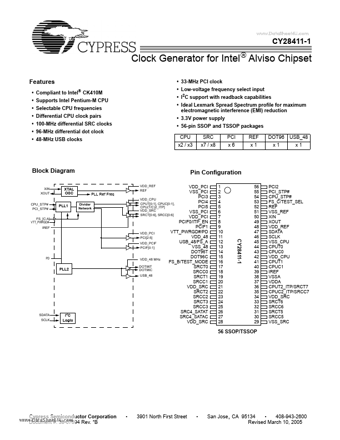

CY28411-1 Datasheet (280.31 KB)

Preview of CY28411-1 PDF

Datasheet Details

Part number:

CY28411-1

Manufacturer:

Cypress Semiconductor

File Size:

280.31 KB

Description:

Clock generator.
