CY7C1512 - 64K x 8 Static RAM

General Description

The CY7C1512 is a high-performance CMOS static RAM organized as 65,536 words by 8 bits.

Key Features

  • High speed.
  • tAA = 15 ns.
  • CMOS for optimum speed/power.
  • Low active power.
  • 770 mW.
  • Low standby power.
  • 28 mW.
  • Automatic power-down when deselected.
  • TTL-compatible inputs and outputs.
  • Easy memory expansion with CE1, CE2, and OE options and three-state drivers. This device has an automatic power-down feature that reduces power consumption by more than 75% when deselected. Writing to the device is accomplished b.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY7C1518AV18 72-Mbit DDR-II SRAM Cypress
CY7C1520AV18 72-Mbit DDR-II SRAM Cypress
CY7C1006D 1-Mbit (256K x 4) Static RAM Cypress
CY7C1011G 2-Mbit (128K words x 16 bit) Static RAM Cypress
CY7C1041G 4-Mbit (256K words x 16 bit) Static RAM Cypress

Other Datasheets by Cypress (Infineon)

Part Number Description
CY7C1512AV18 72-Mbit QDR-II SRAM 2-Word Burst Architecture
CY7C1512KV18 72-Mbit QDR II SRAM Two-Word Burst Architecture
CY7C1512V18 1.8V Synchronous Pipelined SRAM
CY7C1510AV18 72-Mbit QDR-II SRAM 2-Word Burst Architecture
CY7C1510V18 1.8V Synchronous Pipelined SRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

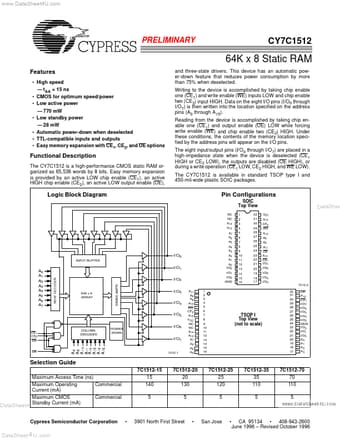

www.DataSheet4U.com 1CY 7C15 12 PRELIMINARY CY7C1512 64K x 8 Static RAM Features • High speed — tAA = 15 ns • CMOS for optimum speed/power • Low active power — 770 mW • Low standby power — 28 mW • Automatic power-down when deselected • TTL-compatible inputs and outputs • Easy memory expansion with CE1, CE2, and OE options and three-state drivers. This device has an automatic power-down feature that reduces power consumption by more than 75% when deselected. Writing to the device is accomplished by taking chip enable one (CE1) and write enable (WE) inputs LOW and chip enable two (CE2) input HIGH. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A15).
