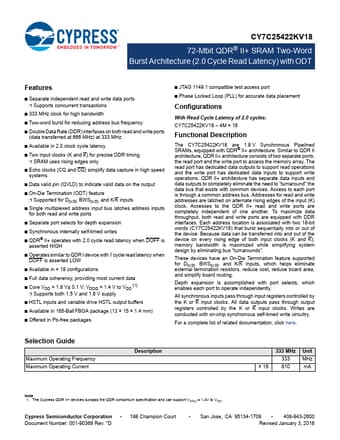

CY7C25422KV18 Datasheet - Cypress Semiconductor

CY7C25422KV18 72-Mbit QDR II+ SRAM Two-Word Burst Architecture

CY7C25422KV18 Features

* Separate independent read and write data ports

* Supports concurrent transactions

* 333 MHz clock for high bandwidth

* Two-word burst for reducing address bus frequency

* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 666 MHz) at 333 MHz

Datasheet Details

CY7C25422KV18

Cypress Semiconductor

557.73 KB

72-mbit qdr ii+ sram two-word burst architecture.
