CY7C2644KV18, CY7C2642KV18 Datasheet - Cypress Semiconductor

CY7C2644KV18 144-Mbit QDR II+ SRAM Two-Word Burst Architecture

CY7C2644KV18 Features

* Separate independent read and write data ports

* Supports concurrent transactions

* 333-MHz clock for high bandwidth

* Two-word burst for reducing address bus frequency

* Double data rate (DDR) interfaces on both read and write ports (data transferred at 666 MHz) at 333 MHz

CY7C2642KV18-CypressSemiconductor.pdf

This datasheet PDF includes multiple part numbers: CY7C2644KV18, CY7C2642KV18. Please refer to the document for exact specifications by model.

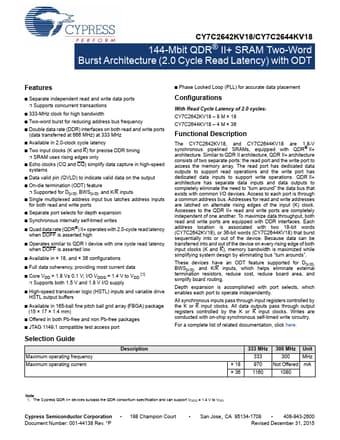

CY7C2644KV18 Datasheet Preview Page 2 CY7C2644KV18 Datasheet Preview Page 3
