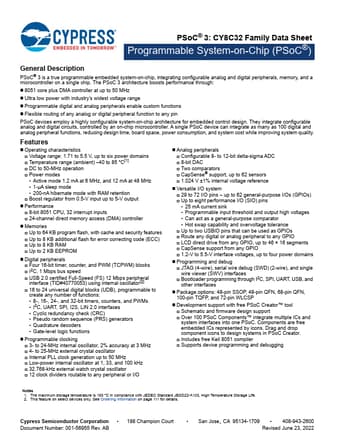

CY8C32 Programmable System-on-Chip

PSoC® 3 is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. The PSoC 3 architecture boosts performance through: * 8051 core plus DMA controller at up to 50 MHz * Ultra low power with industry.

CY8C32 Features

* Operating characteristics  Voltage range: 1.71 to 5.5 V, up to six power domains  Temperature range (ambient)

* 40 to 85 °C[1]  DC to 50-MHz operation  Power modes

* Active mode 1.2 mA at 6 MHz, and 12 mA at 48 MHz

* 1-µA sleep mode

* 200-nA hibernate mode wi
