CY8C34 - Programmable System-on-Chip

Cypress Semiconductor

The CY8C34 by Cypress Semiconductor is a Programmable System-on-Chip. Below is the official datasheet preview.

📥 Download Datasheet

CY8C34 Programmable System-on-Chip by Cypress Semiconductor - Datasheet Preview — Official preview page of the **CY8C34** Programmable System-on-Chip datasheet (Cypress Semiconductor).

Datasheet Details

Part number	CY8C34
Manufacturer	Cypress Semiconductor
File Size	4.15 MB
Description	Programmable System-on-Chip
Datasheet	CY8C34_CypressSemiconductor.pdf

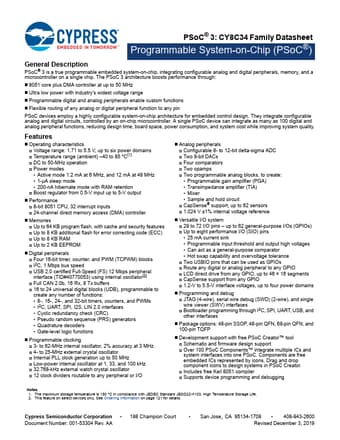

Additional preview pages of the CY8C34 datasheet.

CY8C34 Product details

Description

PSoC® 3 is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. 8051 core plus DMA controller at up to 50 MHz Ultra low power with industry's widest voltage range Programmable digital and analog peripherals enable custom functions Flexible routing of any analog or digital peripheral function to any pin PSoC devices employ a h

Features

Operating characteristics  Voltage range: 1.71 to 5.5 V, up to six power domains  Temperature range (ambient).
40 to 85 °C[1]  DC to 50-MHz operation  Power modes.
Active mode 1.2 mA at 6 MHz, and 12 mA at 48 MHz.
1-µA sleep mode.
200-nA hibernate mode with RAM retention  Boost regulator from 0.5-V input up to 5-V output.
Performance  8-bit 8051 CPU, 32 interrupt inputs  24-channel direct memory access (DMA) controller.
Memories  Up to 6.
