CY8C58LP - Programmable SoC

Cypress Semiconductor

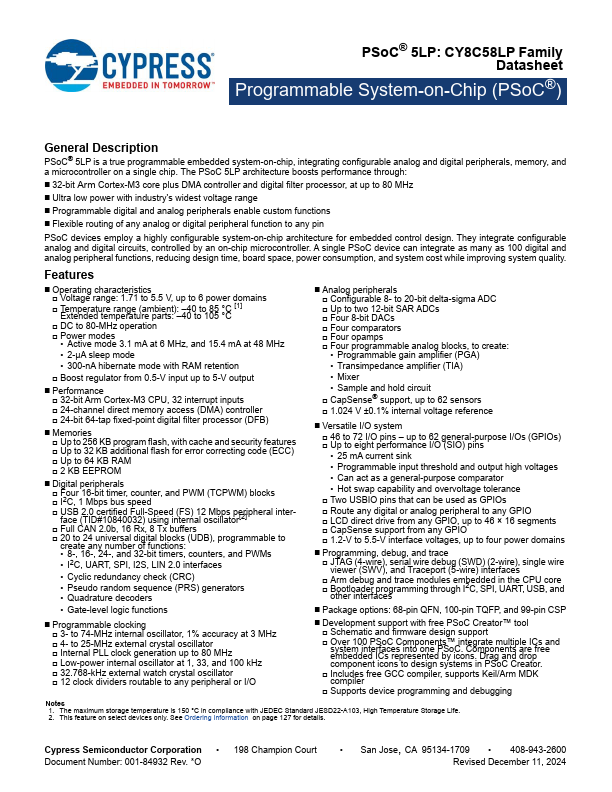

CY8C58LP Datasheet Preview — Preview of CY8C58LP PDF

Datasheet Details

Part number	CY8C58LP
Manufacturer	Cypress Semiconductor
File Size	5.96 MB
Description	Programmable SoC
Datasheet	CY8C58LP-CypressSemiconductor.pdf

CY8C58LP Product details

Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. 32-bit Arm Cortex-M3 core plus DMA controller and digital filter processor, at up to 80 MHz Ultra low power with industry's widest voltage range Programmable digital and analog peripherals enable custom functions Flexible routing of any analog or digital peri

Features

Operating characteristics  Voltage range: 1.71 to 5.5 V, up to 6 power domains  Temperature range (ambient):.
40 to 85 Extended temperature parts:.
40 to 105 °C °C [1]  DC to 80-MHz operation  Power modes.
Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz.
2-µA sleep mode.
300-nA hibernate mode with RAM retention  Boost regulator from 0.5-V input up to 5-V output.
Performance  32-bit Arm Cortex-M3 CPU, 32 interrupt inputs .
