CY8C5266AXI-LP132

Programmable System-on-Chip

CY8C5266AXI-LP132 Features

* Operating characteristics  Voltage range: 1.71 to 5.5 V, up to 6 power domains  Temperature range (ambient)

* 40 to 85 °C[1]  DC to 80-MHz operation  Power modes

* Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz

* 2-µA sleep mode

* 300-nA hibernate mode w

CY8C5266AXI-LP132 General Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, and a microcontroller on a single chip. The PSoC 5LP architecture boosts performance through:
* 32-bit Arm® Cortex®-M3 core plus DMA controller at up to 80 MHz
* Ultra l.

CY8C5266AXI-LP132 Datasheet (3.76 MB)

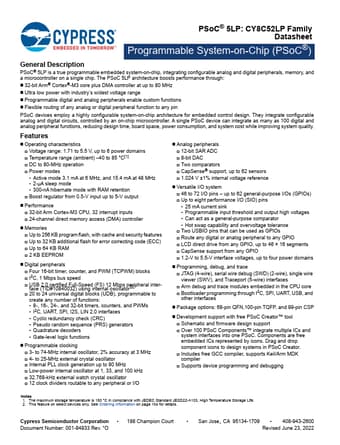

Preview of CY8C5266AXI-LP132 PDF

Datasheet Details

Part number:

CY8C5266AXI-LP132

Manufacturer:

Cypress

File Size:

3.76 MB

Description:

Programmable system-on-chip.
