CYII4SM1300AA-QDC - 1.3 MPxl Rolling Shutter CMOS Image Sensor

Product Overview

Cypress Semiconductor

📥 Download Datasheet

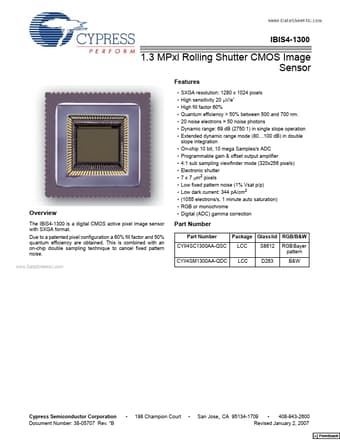

CYII4SM1300AA-QDC 1.3 MPxl Rolling Shutter CMOS Image Sensor by Cypress Semiconductor - Datasheet Preview — Datasheet preview – CYII4SM1300AA-QDC

Datasheet Details

Part number	CYII4SM1300AA-QDC
Manufacturer	Cypress Semiconductor
File Size	1.23 MB
Description	1.3 MPxl Rolling Shutter CMOS Image Sensor
Datasheet	CYII4SM1300AA-QDC Datasheet
Note	This datasheet PDF includes multiple part numbers: CYII4SM1300AA-QDC, CYII4SC1300AA-QSC. Please refer to the document for exact specifications by model.
Additional preview pages of the CYII4SM1300AA-QDC datasheet.

Product details

Features

SXGA resolution: 1280 x 1024 pixels High sensitivity 20 µV/eHigh fill factor 60% Quantum efficiency > 50% between 500 and 700 nm. 20 noise electrons = 50 noise photons Dynamic range: 69 dB (2750:1) in single slope operation Extended dynamic range mode (80…100 dB) in double slope integration On-chip 10 bit, 10 mega Samples/s ADC.
