CYII5SM1300AB - IBIS5 1.3 Megapixel CMOS Image Sensor

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CYII5SM1300AB
Manufacturer	Cypress Semiconductor
File Size	1.51 MB
Description	IBIS5 1.3 Megapixel CMOS Image Sensor
Datasheet	CYII5SM1300AB Datasheet

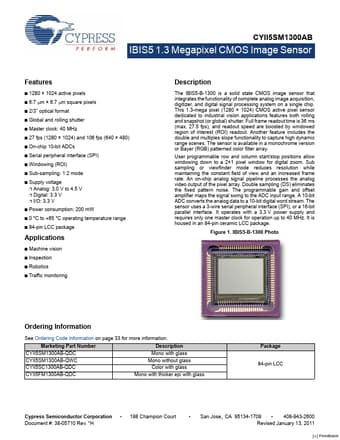

Additional preview pages of the CYII5SM1300AB datasheet.

Product details

Description

The IBIS5-B-1300 is a solid state CMOS image sensor that integrates the functionality of complete analog image acquisition, digitizer, and digital signal processing system on a single chip.

Features

1280 × 1024 active pixels.
6.7 μm × 6.7 μm square pixels.
2/3” optical format.
Global and rolling shutter.
Master clock: 40 MHz.
27 fps (1280 × 1024) and 106 fps (640 × 480).
On-chip 10-bit ADCs.
Serial peripheral interface (SPI).
Windowing (ROI).
Sub-sampling: 1:2 mode.
Supply voltage.
Analog: 3.0 V to 4.5 V.
Digital: 3.3 V.
I/O: 3.3 V.
Power consumption: 200 mW.
0 °C to +65 °C operating temperature range.
84-.
