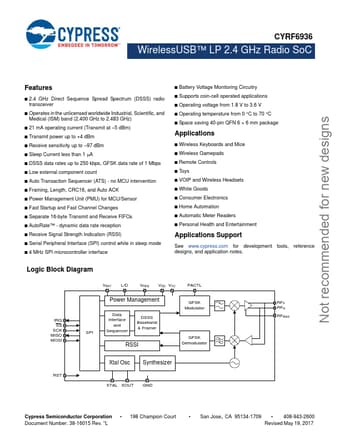

CYRF6936 - WirelessUSB LP 2.4GHz Radio SoC

Cypress Semiconductor

CYRF6936 Datasheet Preview — Preview of CYRF6936 PDF

Datasheet Details

Part number	CYRF6936
Manufacturer	Cypress Semiconductor
File Size	1.07 MB
Description	WirelessUSB LP 2.4GHz Radio SoC
Datasheet	CYRF6936_CypressSemiconductor.pdf

CYRF6936 Product details

Description

3 Pinouts 3 Pin Definitions 3 Functional Overview 4 Data Transmission Modes 4 Link Layer Modes 4 Packet Buffers 5 Auto Transaction Sequencer (ATS) 6 Data Rates 6 Functional Block Overview 6 2.4 GHz Radio 6 Frequency Synthesizer 6 Baseband and Framer 6 Packet Buffers and Radio Configuration Registers 6 SPI Interface 6 Interrupts 8 Clocks 8 Power Management 8 Low Noise Amplifier and Received Signal Strength Indication 9 Receive Spurious Response 9 Application Examples 10 Regis

Features

2.4 GHz Direct Sequence Spread Spectrum (DSSS) radio transceiver.
Operates in the unlicensed worldwide Industrial, Scientific, and Medical (ISM) band (2.400 GHz to 2.483 GHz).
21 mA operating current (Transmit at.
5 dBm).
Transmit power up to +4 dBm.
Receive sensitivity up to.
97 dBm.
Sleep Current less than 1 A.
DSSS data rates up to 250 kbps, GFSK data rate of 1 Mbps.
Low external component count.
Auto Transaction Sequencer (ATS) -.
