CYUSB2304

HX3 USB 3.0 Hub

CYUSB2304 Features

* Shared Link™: Enables extra downstream (DS) ports for on-board connections in embedded applications Ghost Charge™: Enables charging of devices connected to the DS ports when no host is connected on the upstream (US) port HX3 USB 3.0 Hub Features

* USB-IF Certified Hub, TID# 330000060, 300000

CYUSB2304 General Description

HX3 is a family of USB 3.0 hub controllers compliant with the USB 3.0 specification revision 1.0. HX3 supports SuperSpeed (SS), Hi-Speed (HS), Full-Speed (FS), and Low-Speed (LS) on all the ports. It has integrated termination, pull-up, and pull-down resistors, and supports configuration options th.

CYUSB2304 Datasheet (1.37 MB)

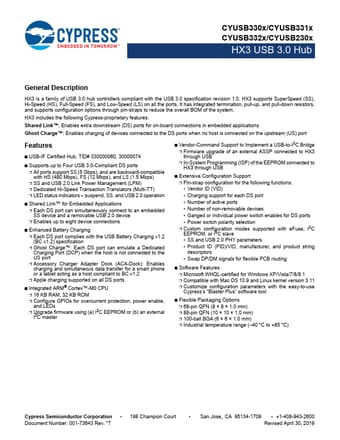

Preview of CYUSB2304 PDF

Datasheet Details

Part number:

CYUSB2304

Manufacturer:

Cypress Semiconductor

File Size:

1.37 MB

Description:

Hx3 usb 3.0 hub.
