S29AL008J

Boot Sector Flash Memory

S29AL008J Features

* A hardware method of locking a sector to prevent any program or erase operations within that sector

* Sectors can be locked in-system or via programming equipment

* Temporary Sector Unprotect feature allows code changes in previously locked sectors

* Unlock Bypass Progr

S29AL008J General Description

The S29AL008J is a 8 Mbit, 3.0 Volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15

*DQ0; the bytewide (x8) data appears on DQ7

*DQ0. This.

S29AL008J Datasheet (738.97 KB)

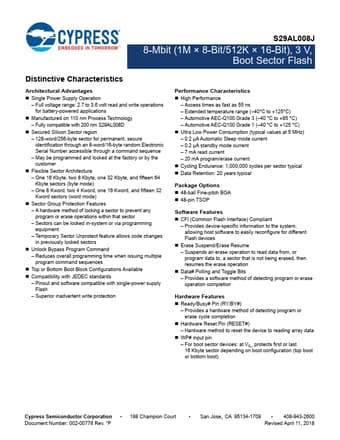

Preview of S29AL008J PDF

Datasheet Details

Part number:

S29AL008J

Manufacturer:

Cypress Semiconductor

File Size:

738.97 KB

Description:

Boot sector flash memory.
S29AL008J 8-Mbit (1M × 8-Bit/512K × 16-Bit), 3 V, Boot Sector Flash Distinctive Characteristics Architectural Advantages
* Single Power Supply Op.
