S29AL016M Datasheet - SPANSION

S29AL016M 16 MEGABIT (2M X 8 BIT / I M X 16 BIT) 3.0 VOLT ONLY BOOT SECTOR FLASH MEMORY

The S29AL016M is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in a 48-ball Fine-pitch BGA, 64ball Fortified BGA, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15 *DQ0; the byte-wide (x8) data appears on DQ7 <.

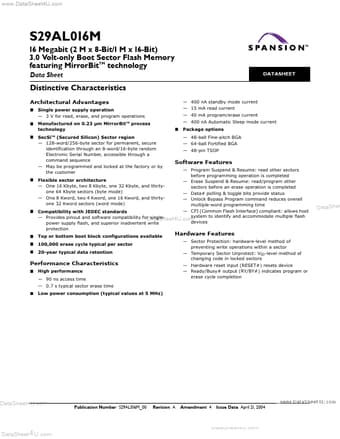

www.DataSheet4U.com S29AL016M 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) 3.0 Volt-only Boot Sector Flash Memory featuring MirrorBitTM technology Data Sheet DATASHEET Distinctive Characteristics Architectural Advantages Single power supply operation 3 V for read, erase, and program operations Manufactured on 0.23 µm MirrorBitTM process technology SecSiTM (Secured Silicon) Sector region 128-word/256-byte sector for permanent, secure identification thr.

S29AL016M Features

* Program Suspend & Resume: read other sectors before programming operation is completed Flexible sector architecture

* Erase Suspend & Resume: read/program other

* One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirtysectors before an erase operation is

S29AL016M_SPANSION.pdf

S29AL016M Datasheet Preview — Preview of S29AL016M PDF

Datasheet Details

Part number:

S29AL016M

Manufacturer:

SPANSION

File Size:

1.96 MB

Description:

16 megabit (2m x 8 bit / i m x 16 bit) 3.0 volt only boot sector flash memory.
