S6AE101A, Energy Harvesting PMIC
3 3.
Architecture Block Diagram 4 4.
Absolute Maximum Ratings 5 5.
Recommended Operating Conditions 5 6.
Electrical Characteristics 6 7.
Functional Description 7 7.1 Power Supply Control 7 7.2 Power Gating 14 7.3 Discharge 14 7.4 Over Voltage Protection (OVP Block) 14 8.
Application Circuit Exa

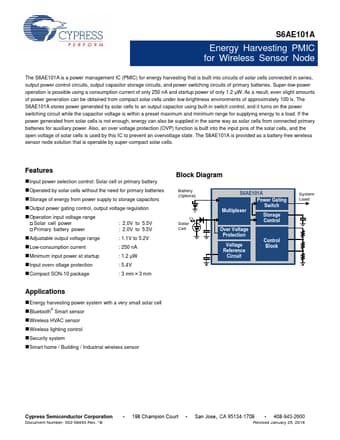

S6AE101A Energy Harvesting PMIC for Wireless Sensor Node The S6AE101A is a power management IC (PMIC) for energy harvesting that is built into circuits of solar cells connected in series, output power control circuits, output capacitor storage circuits, and power switching circuits of primary batteries.
Super-low-power operation is possible using a consumption current of only 250 nA and startup power of only 1.2 µW.
As a result, even slight amounts of power generation can be obtained from compac
S6AE101A Features
* Input power selection control: Solar cell or primary battery
* Operated by solar cells without the need for primary batteries
* Storage of energy from power supply to storage capacitors
* Output power gating control, output voltage regulation
* Operation input voltage range S
