S6J32GELTPSC20000

The S6J32GELTPSC20000 is 32-bit Microcontroller designed by Cypress Semiconductor.

Product Overview

Cypress Semiconductor

📥 Download Datasheet

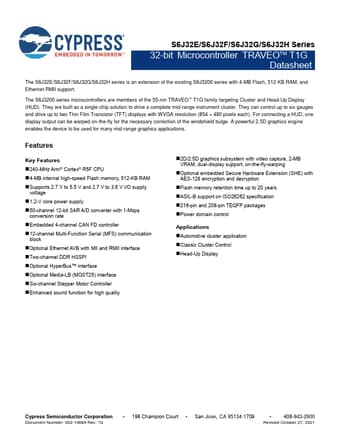

S6J32GELTPSC20000 32-bit Microcontroller by Cypress Semiconductor - Datasheet Preview — Datasheet preview – S6J32GELTPSC20000

Datasheet Details

Part number	S6J32GELTPSC20000, S6J32E
Manufacturer	Cypress Semiconductor
File Size	2.90 MB
Description	32-bit Microcontroller
Datasheet	S6J32E-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: S6J32GELTPSC20000, S6J32E. Please refer to the document for exact specifications by model.
Additional preview pages of the S6J32GELTPSC20000 datasheet.

Product details

Description

11 3.1 Overview 11 3.2 Product Description 11 4.

Features

Key Features.
240-MHz Arm® Cortex® R5F CPU.
4-MB internal high-speed Flash memory, 512-KB RAM.
Supports 2.7 V to 5.5 V and 2.7 V to 3.6 V I/O supply voltage.
1.2-V core power supply.
50-channel 12-bit SAR A/D converter with 1-Msps conversion rate.
Embedded 4-channel CAN FD controller.
12-channel Multi-Function Serial (MFS) communication block.
Optional Ethernet AVB with MII and RMII interface.
Two-channel DDR HSSPI.
Optional HyperBus™ interface.
Option.
