CY25422 - Two-PLL Programmable Clock Generator

Product Overview

Cypress

Part number	CY25422
Manufacturer	Cypress
File Size	277.65 KB
Description	Two-PLL Programmable Clock Generator
Datasheet	CY25422 Datasheet
Note	This datasheet PDF includes multiple part numbers: CY25422, CY25402. Please refer to the document for exact specifications by model.

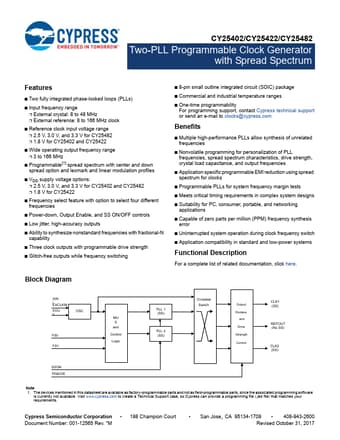

Additional preview pages of the CY25422 datasheet.

Two fully integrated phase-locked loops (PLLs).
Input frequency range.
External crystal: 8 to 48 MHz.
External reference: 8 to 166 MHz clock.
Reference clock input voltage range.
2.5 V, 3.0 V, and 3.3 V for CY25482.
1.8 V for CY25402 and CY25422.
Wide operating output frequency range.
3 to 166 MHz.
Programmable[1] spread spectrum with center and down spread option and lexmark and linear modulation profiles.
VDD supply voltage options:.
