CY2545 - Quad-PLL Programmable Spread Spectrum Clock Generator

Product Overview

Cypress

Part number	CY2545
Manufacturer	Cypress
File Size	347.80 KB
Description	Quad-PLL Programmable Spread Spectrum Clock Generator
Datasheet	CY2545 Datasheet

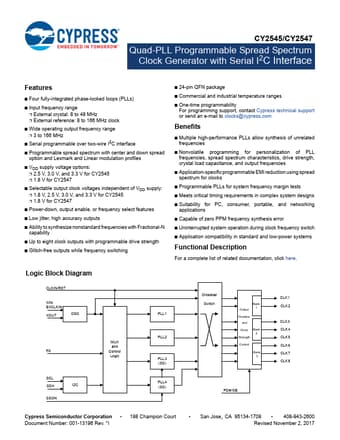

Additional preview pages of the CY2545 datasheet.

Four fully-integrated phase-locked loops (PLLs).
Input frequency range.
External crystal: 8 to 48 MHz.
External reference: 8 to 166 MHz clock.
Wide operating output frequency range.
3 to 166 MHz.
Serial programmable over two-wire I2C interface.
Programmable spread spectrum with center and down spread option and Lexmark and Linear modulation profiles.
VDD supply voltage options:.
2.5 V, 3.0 V, and 3.3 V for CY2545.
1.8 V for CY2547.
Sel.
