CY96F683, CY96680 16-Bit Microcontroller

CY96F683 Description

CY96680 Series F2MC-16FX 16-Bit Microcontroller CY96680 series is based on Cypress advanced F2MC-16FX architecture (16-bit with instruction pipeline .

CY96F683 Features

* Technology 0.18m CMOS

CY96F683 Applications

* (bit, byte, word and long-word data types, 23 different addressing modes, barrel shift, variety of pointers)  8-byte instruction queue  Signed multiply (16-bit × 16-bit) and divide (32-bit/16-bit) instructions available
* System clock  On-chip PLL clock multiplier (1 to 8, 1 when PLL stop)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CY96F683, CY96680. Please refer to the document for exact specifications by model.

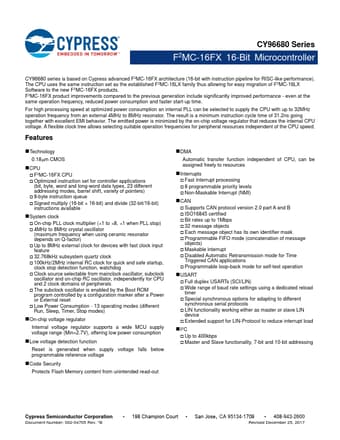

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CY96F683, CY96680
Manufacturer
Cypress
File Size
1.03 MB
Datasheet
CY96680-Cypress.pdf
Description
16-Bit Microcontroller
Note
This datasheet PDF includes multiple part numbers: CY96F683, CY96680.
Please refer to the document for exact specifications by model.
