* Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
* The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advan

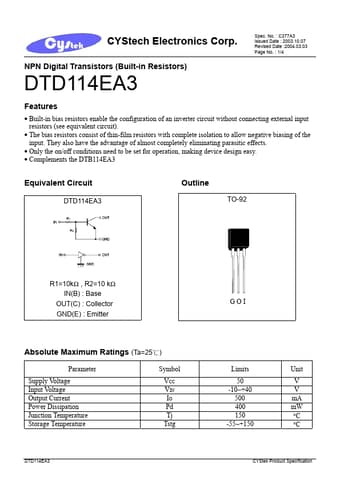

DTD114EA3 Datasheet (141.39 KB)
DTD114EA3
Cystech Electonics
141.39 KB
Npn digital transistors.
CYStech Electronics Corp.
NPN Digital Transistors (Built-in Resistors)
DTD114EA3
Spec. No. : C377A3 Issued Date : 2003.10.07 Revised Date :2004.03.03.
