DTD114E - Digital transistors

Rohm

📥 Download Datasheet

DTD114E Datasheet Preview — Preview of DTD114E PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTD114E
Manufacturer	ROHM ↗
File Size	60.89 KB
Description	Digital transistors
Datasheet	DTD114E_Rohm.pdf

DTD114E Product details

Features

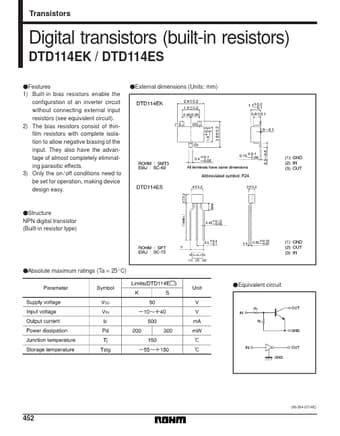

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. FExternal dimensions (Units: mm) FStructure NPN digital transistor (.
