MTC5806AQ8 Datasheet - Cystech Electonics

N-&P-Channel MOSFET

MTC5806AQ8 Features

* Simple drive requirement

* Low on-resistance

* Fast switching speed

* Pb-free package Equivalent Circuit MTC5806AQ8 Outline SOP-8 G：Gate S：Source D：Drain MTC5806AQ8 CYStek Product Specification CYStech Electronics Corp. Spec. No. : C407Q8 Issued Date : 200

MTC5806AQ8 General Description

The MTC5806AQ8 consists of a N-channel and a P-channel enhancement-mode MOSFET in a single SOP-8 package, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOP-8 package is universally preferred for all commerc.

MTC5806AQ8 Datasheet (316.77 KB)

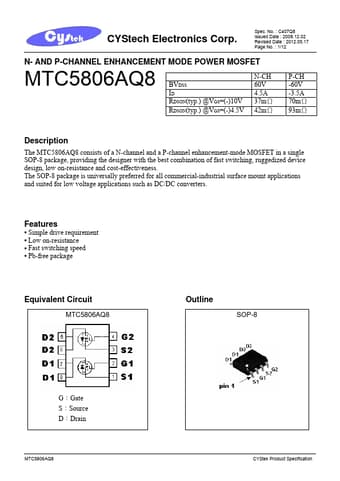

MTC5806AQ8 Datasheet Preview — Preview of MTC5806AQ8 PDF

Datasheet Details

Part number:

MTC5806AQ8

Manufacturer:

Cystech Electonics

File Size:

316.77 KB

Description:

N-&p-channel mosfet.
CYStech Electronics Corp. Spec. No. : C407Q8 Issued Date : 2008.12.02 Revised Date : 2012.05.17 Page No. : 1/12 N- AND P-CHANNEL ENHANCEMENT MODE PO.
