MTC5515

10 Gb/s Modulator Driver

MTC5515 Features

* 23 dB typical gain

* Output voltage up to 8VPP

* Low gain ripple, 1.5 dBPP typical

* 30 KHz to 11 GHz bandwidth Description The MTC5515 is a precision GaAs medium power amplifier. It operates from 30 KHz to 11 GHz and exhibits a flat linear gain response. The MTC551

MTC5515 General Description

The MTC5515 is a precision GaAs medium power amplifier. It operates from 30 KHz to 11 GHz and exhibits a flat linear gain response. The MTC5515 has low internal jitter making it useful for digital applications. The self-contained module operates from a +8V and a -5V power supply. It is fully hermeti.

MTC5515 Datasheet (89.67 KB)

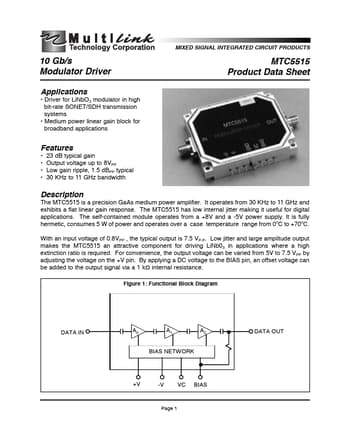

Preview of MTC5515 PDF

Datasheet Details

Part number:

MTC5515

Manufacturer:

Multilink

File Size:

89.67 KB

Description:

10 gb/s modulator driver.
10 Gb/s Modulator Driver MIXED SIGNAL INTEGRATED CIRCUIT PRODUCTS MTC5515 Product Data Sheet Applications

* Driver for LiNbO3 modulator in h.
