MBR8030R - SCHOTTKY DIODE MODULE

This page provides the datasheet information for the MBR8030R, a member of the MBR8020 SCHOTTKY DIODE MODULE family.

Datasheet Summary

Features

  • High Surge Capability Types Up to 100 V VRRM 80Amp Recti er 20-100 Volts Maximum Ratings Operating Temperature: -55 C to +150 Storage Temperature: -55 C to +150 M J Maximum Part Number Recurrent Peak Reverse Voltage MBR8020(R) 20V MBR8030(R) 30V MBR8035(R) 35V MBR8040(R) 40V MBR8045(R) 45V MBR8060(R) 60V MBR8080(R) 80V MBR80100(R) 100V Maximum RMS Voltage Maximum DC Blocking Voltage 14V 20V 21V 30V 25V 35V 28V 40V 32V 45V 42V 60V 50V 80V 70V 100V P A Electrical Characteristics.

📥 Download Datasheet

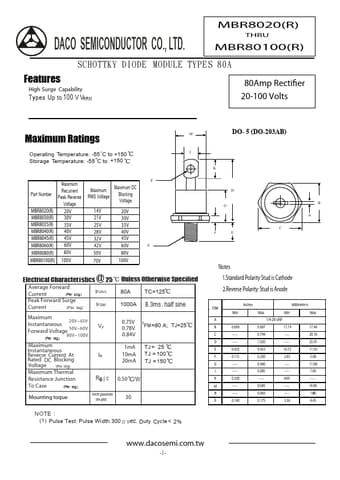

Datasheet preview – MBR8030R

Datasheet Details

Part number MBR8030R
Manufacturer DACO SEMICONDUCTOR
File Size 812.64 KB
Description SCHOTTKY DIODE MODULE
Datasheet download datasheet MBR8030R Datasheet
Additional preview pages of the MBR8030R datasheet.

📁 Similar Datasheet

  • MBR8030R - (MBR8020 - MBR80100R) SCHOTTKY DIODES (TRANSYS)
  • MBR8030R - (MBR8020 - MBR8040R) Schottky Power Diode (Naina Semiconductor)
  • MBR8030R - Silicon Power Schottky Diode (America Semiconductor)
  • MBR8030R - Silicon Power Schottky Diode (GeneSiC)
  • MBR8030 - 80 Amp Schottky Barrier Rectifier (MCC)
  • MBR8030 - (MBR8020 - MBR80100R) SCHOTTKY DIODES (TRANSYS)
  • MBR8030 - (MBR8020 - MBR8040R) Schottky Power Diode (Naina Semiconductor)
  • MBR8030 - Silicon Power Schottky Diode (America Semiconductor)
  • MBR8030 - Silicon Power Schottky Diode (GeneSiC)
  • MBR8035 - 80 Amp Schottky Barrier Rectifier (MCC)
Other Datasheets by DACO SEMICONDUCTOR

Full PDF Text Transcription

Click to expand full text
DACO SEMICONDUCTOR CO., LTD. MBR8020(R) THRU MBR80100(R) SCHOTTKY DIODE MODULE TYPES 80A Features High Surge Capability Types Up to 100 V VRRM 80Amp Recti er 20-100 Volts Maximum Ratings Operating Temperature: -55 C to +150 Storage Temperature: -55 C to +150 M J Maximum Part Number Recurrent Peak Reverse Voltage MBR8020(R) 20V MBR8030(R) 30V MBR8035(R) 35V MBR8040(R) 40V MBR8045(R) 45V MBR8060(R) 60V MBR8080(R) 80V MBR80100(R) 100V Maximum RMS Voltage Maximum DC Blocking Voltage 14V 20V 21V 30V 25V 35V 28V 40V 32V 45V 42V 60V 50V 80V 70V 100V P A Electrical Characteristics @ 25 Average Forward Current (Per pkg) IF(AV) Peak Forward Surge Current (Per leg) IFSM Unless Otherwise Specified 80A TC=125 1000A 8.
