DSWM9040 Datasheet - DAICO Industries

DSWM9040 Switch SPT

F E AT U R E S 350 - 450 MHz 1.7 dB Insertion Loss 55 dB Isolation 6 Line Encoded TTL Control Constant Phase Bite Circuitry SMA Connectors .218 DIA 6 HOLES 8.250 2.750 .56 J41 J31 J32 J33-ROW 4 J21 J22 J23-ROW 3 J11 J12 J13-ROW 2 J1 J2 J3-ROW 1 MODEL NO. DSWM9040 P IN Dio d e Switch S P40T HDI J1 J2 J3 J38 J39 J40 www.DataSheet4U.com CONNECTOR 15 PIN M24308/3-2F SMA FEMALE 41 PLACES .25 .25 1.150 4.25 4.00 3.12 IDENT SURFACE 2.600 3.750 1 50 OHMS TYPICAL J42 .50 7.50 8.75 J42 .

DSWM9040_DAICOIndustries.pdf

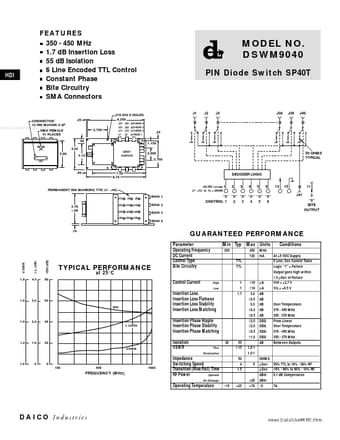

Preview of DSWM9040 PDF

Datasheet Details

Part number:

DSWM9040

Manufacturer:

DAICO Industries

File Size:

60.88 KB

Description:

Switch spt.
