SPM40401R0MECH Datasheet - DARFON

SPM40401R0MECH Inductors-SPM

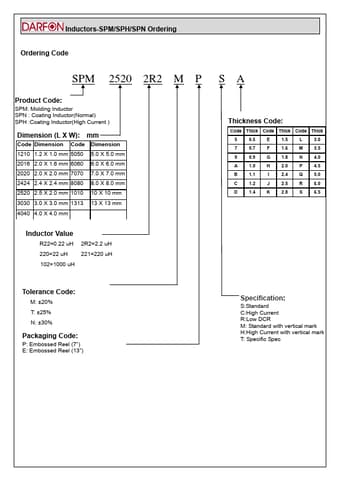

Inductors-SPM/SPH/SPN Ordering Ordering Code SPM 2520 2R2 M P Product Code: SPM: Molding Inductor SPN : Coating Inductor(Normal) SPH :Coating Inductor(High Current ) Dimension (L X W): mm Code Dimension Code Dimension 1210 1.2 X 1.0 mm 5050 5.0 X 5.0 mm 2016 2.0 X 1.6 mm 6060 6.0 X 6.0 mm 2020 2.0 X 2.0 mm 7070 7.0 X 7.0 mm 2424 2.4 X 2.4 mm 8080 8.0 X 8.0 mm 2520 2.5 X 2.0 mm 1010 10 X 10 mm 3030 3.0 X 3.0 mm 1313 13 X 13 mm 4040 4.0 X 4.0 mm Inductor Value R22=0.22 uH 220=22 uH 102=1000 uH .

SPM40401R0MECH Datasheet (268.91 KB)
