SPM40401R5MESC Wire Wound Power Inductors

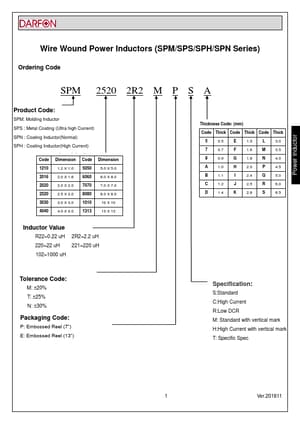

Power Inductor Wire Wound Power Inductors (SPM/SPS/SPH/SPN Series) Ordering Code SPM 2520 2R2 M P S A Product Code: SPM: Molding Inductor SPS : Metal Coating (Ultra high Current) SPN : Coating Inductor(Normal) SPH : Coating Inductor(High Current) Dimension (L X W): (mm) Code Dimension Code Dimension 1210 1.2 X 1.0 5050 5.0 X 5.0 2016 2.0 X 1.6 6060 6.0 X 6.0 2020 2.0 X 2.0 7070 7.0 X 7.0 2520 2.5 X 2.0 8080 8.0 X 8.0 3030 3.0 X 3.0 1010 10 X 10 4040 4.0 X 4.0 1313 13 X 13 Inductor Value R22=0.

SPM40401R5MESC Datasheet (344.64 KB)
