DAC-1225 Datasheet, Converters, DATEL

DAC-1225 Features

• Converters n 12-Bit resolution n 250MSPS conversion rate n 2mA -20mA output current n Operates from single +2.7 to +3.6 Volt supply n Low power, 120mW n Internal +1.24 Volt reference - optional ex

PDF File Details

Part number:

DAC-1225

Manufacturer:

DATEL

File Size:

430.07kb

Download:

📄 Datasheet

Description:

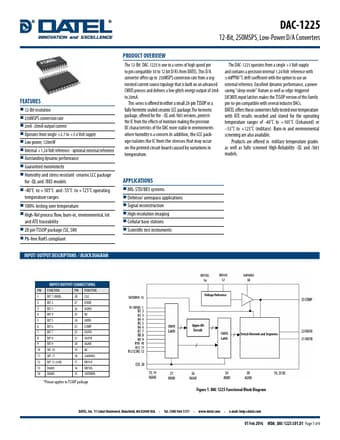

Low-power d/a converters. / BLOCK DIAGRAM INPUT/OUTPUT CONNECTIONS PIN FUNCTION PIN FUNCTION 1 BIT 1 (MSB) 28 CLK 2 BIT 2 27 DVDD 3 BIT 3 26 DGND 4

DAC-1225 Application

• Applications n MIL-STD/883 systems n Defense/ aerospace applications n Signal reconstruction n High resolution imaging n Cellular base stations n 4D
