DAC-1025 Low-Power D/A Converters

DAC-1025 Description

DAC-1025 10-Bit, 250MSPS, Low-Power D/A Converters .
/ BLOCK DIAGRAM INPUT/OUTPUT CONNECTIONS PIN FUNCTION PIN FUNCTION 1 BIT 1 (MSB) 28 CLK 2 BIT 2 27 DVDD 3 BIT 3 26 DGND 4 BIT 4 25 NC 5 B.

DAC-1025 Features

* n 10-Bit resolution n 250MSPS conversion rate n 2mA -20mA output current n Operates from single +2.7 to +3.6 Volt supply n Low power, 120mW n Internal +1.24 Volt reference - optional external reference n Outstanding dynamic performance n Guaranteed monotonicity n Humidity and stress resistant cerami

📥 Download Datasheet

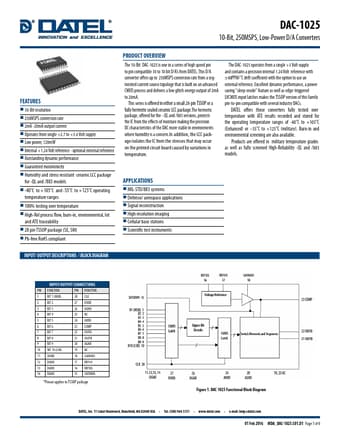

Preview of DAC-1025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC-1025
Manufacturer
DATEL
File Size
425.77 KB
Datasheet
DAC-1025-DATEL.pdf
Description
Low-Power D/A Converters
