DAC-HF8BMC - 812-Bit Digital-to-Analog Converters

The DAC-HF8BMC by DATEL is a 812-Bit Digital-to-Analog Converters. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the DAC-HF8BMC 812-Bit Digital-to-Analog Converters datasheet (DATEL).

Datasheet Details

Part number DAC-HF8BMC
Manufacturer DATEL
File Size 194.70 KB
Description 812-Bit Digital-to-Analog Converters
Datasheet download datasheet DAC-HF8BMC-DATEL.pdf

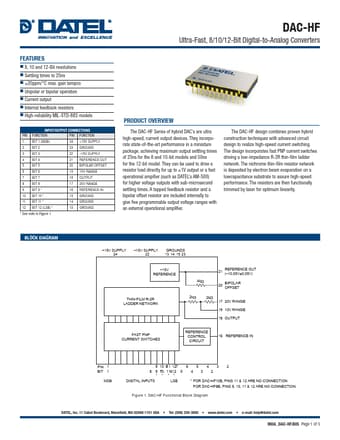

Additional preview pages of the DAC-HF8BMC datasheet.

DAC-HF8BMC Product details

Description

INPUTS Resolution, Bits Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("1") Input Logic Level, Bit OFF ("0") 8B 10B 12B 8 10 12 Straight binary Offset binary +2.0V to +5.5V at +40μA 0V to +0.8V at 2.6mA PERFORMANCE Nonlinearity Error, max.TMIN to TMAX Differential Nonlinearity Error, max.TMIN to TMAX Monotonicity Gain Tempco, max.Offset Tempco, Bipolar, max.Zero Tempco, max.Settling Time, ns max.➂ Power Supply Sensitivity ±0.012% ±0.024% ±0

Features
