DAC-HF8BME, DAC-HF8BMC Datasheet - DATEL

DAC-HF8BME 8-Bit Digital-to-Analog Converters

INPUTS Resolution, Bits Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("1") Input Logic Level, Bit OFF ("0") 8B 10B 12B 8 10 12 Straight binary Offset binary +2.0V to +5.5V at +40μA 0V to +0.8V at *2.6mA PERFORMANCE Nonlinearity Error, max. TMIN to TMAX .

DAC-HF8BME Features

* 8, 10 and 12-Bit resolutions

* Settling times to 25ns

* ±20ppm/°C max. gain tempco

* Unipolar or bipolar operation

* Current output

* Internal feedback resistors

* High-reliability MIL-STD-883 models INPUT/OUTPUT CONNECTIONS PIN FUNCTION P

DAC-HF8BMC-DATEL.pdf

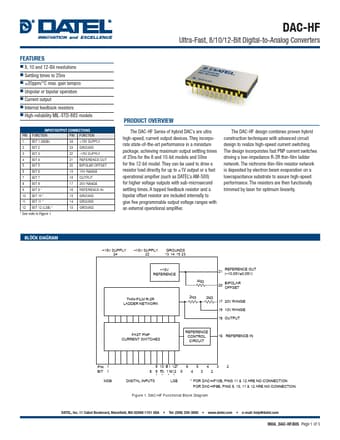

DAC-HF8BME Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC-HF8BME, DAC-HF8BMC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC-HF8BME, DAC-HF8BMC

Manufacturer:

DATEL

File Size:

194.70 KB

Description:

8-bit digital-to-analog converters.

Note:

This datasheet PDF includes multiple part numbers: DAC-HF8BME, DAC-HF8BMC.
Please refer to the document for exact specifications by model.
